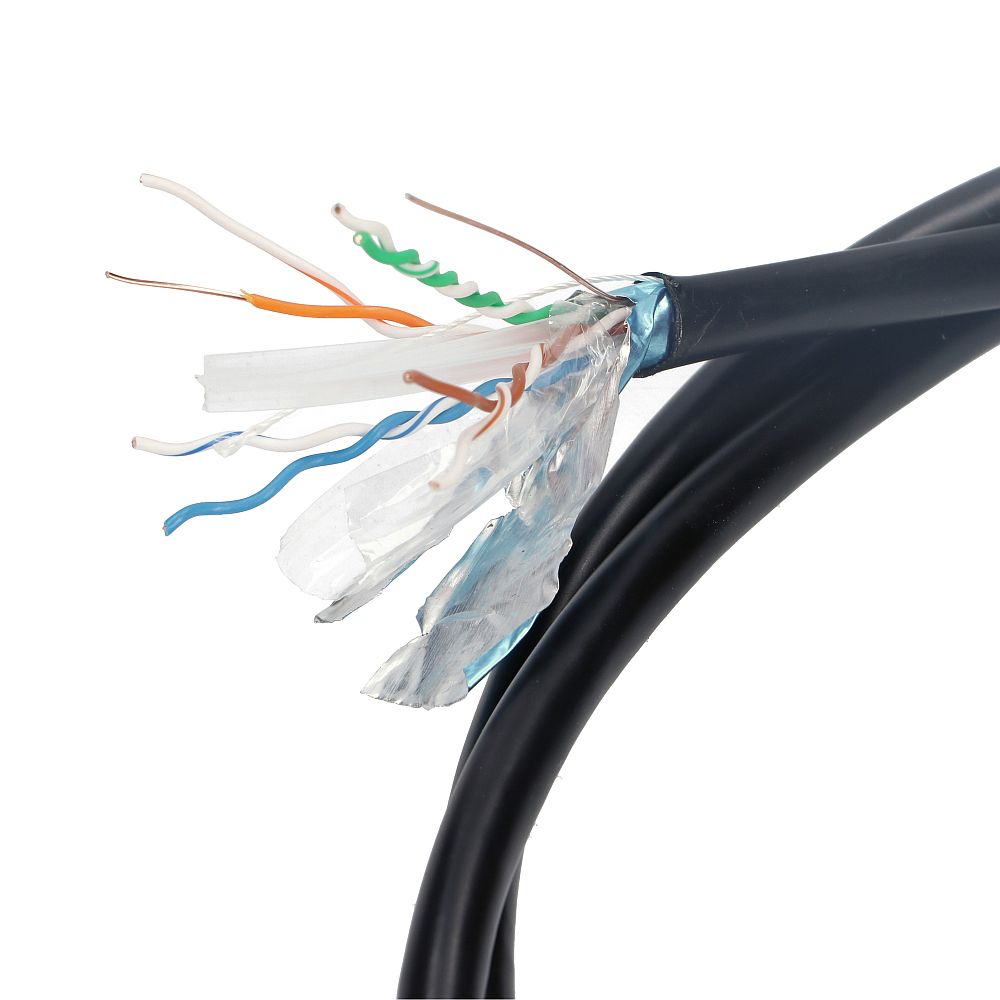

Lýsing EXTRALINK CAT6 FTP OUTDOOR TWISTED PAIR   Outdoor Network FTP Cat.6 cable. Built from 23 AWG copper conductor pairs coated by PE Solid. Shielded by aluminum foil. Additional drain wire helps ground ESD attacks. All coated PE outer jacket 0.60 ± 0.05mm thick, designed to work in every weather and environment.Cable packed in to 1000ft. (304.8m) easy to use rolls. Special internal rotating mechanism prevents cable damage while unrolling.     CABLE DESCRIPTION 100Ω CAT6 FTP 4pairs cable category6 – 250MHz – PE sheath(outdoor) CONDUCTOR TYPE SOLID-Bare copper DIAMETER 0.56mm±0.005mm AWG 23 INSULATION TYPE PE solid DIAMETER 1.08mm±0.03mm SYNTHETICAL SEPARTION FOIL polyester DRAIN WIRE 0.5mm CCS SHIELDING yes RIP CORD YES OUTER JACKET TYPE PE COLOUR BLACK THICKNESS 0.6mm±0.05mm EXTERNAL DIAMETER 7.5mm±0.2mm     PARAMETER UNIT VALUE Max.linear  tesistance. Ω/km ≤80 Mutual capacity(nom.) pF/m 56 Unbalance capacity max (p/p at 1 KHz) pF/km 1600 Characteristic impedance (1 at 100 MHz) Ω 100±15 VELOCITY OF PROPAGATION (f＞1MHz) %of c 66
